8W0035736 AMI CarPlay USB Smartphone Interface Port For Audi A4 A5 B9 8W Q5 FY Q7 8PIN Audio Retrofit Harness

AMI - Audi Music Interface
- 8 PIN Wiring Harness + 2x USB and AUX-IN Audio Dual Port

Compatible with the following vehicle models:

• AUDI A4 B9
• AUDI A5 F5
• AUDI Q5 FY

Scope of delivery:

• 8-PIN Wiring Harness

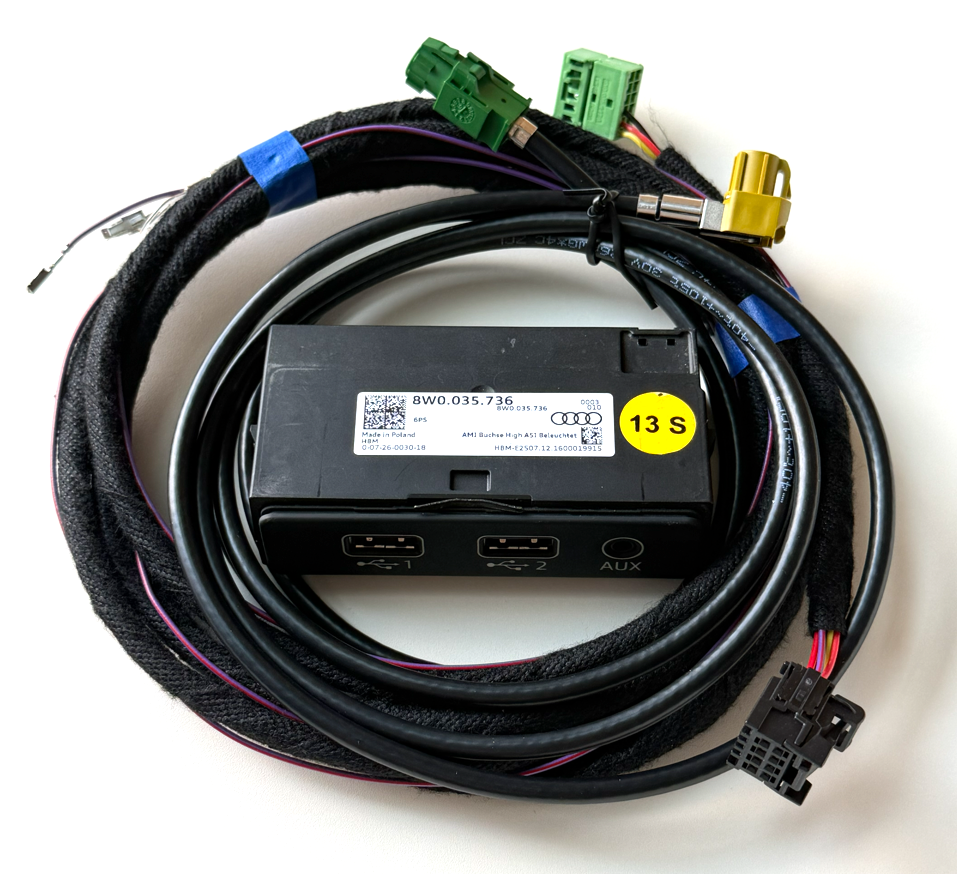

• Audio Interface Module 8W0035736

WARNING:

Please note vehicles starting with model year 2024
with installed PR number NI8 (NI8 = Without UNECE CS (R155) and SU (R156) with SFD2-SG)
or installed PR number NI7 (NI7 = With UNECE CS (R155) without SU (R156))
or installed PR number NI9 (NI9 = With UNECE CS&SU)
or installed PR number NI1 (NI1 = With UNECE CS&SU).

Unfortunately, it can be that these models cannot be retrofit or activated at this time.
Please take this information into consideration before purchasing and contact us providing the VIN to check.

-------------------------------------------------------------------------------------------

RED ------ 12 V + FUSE NO.5 (5A)

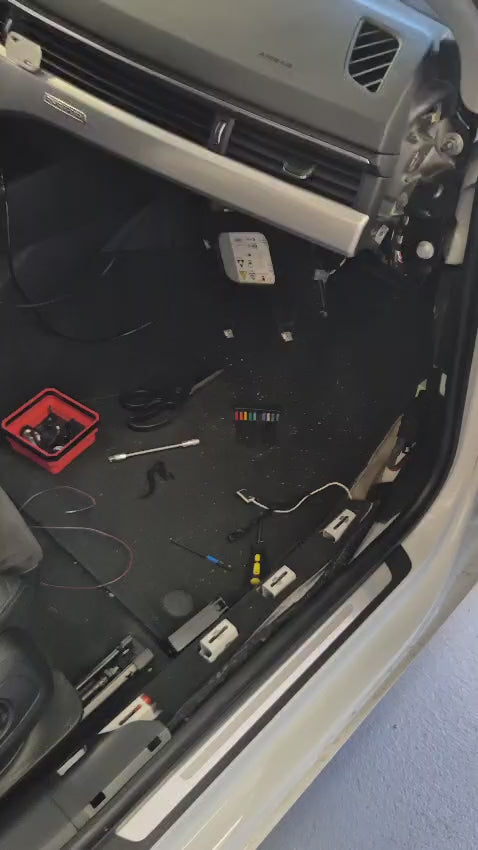

BROWN ---GND GROUND POINT IN FRONT LEFT FOOTWELL
PURPLE PINK COLOR WIRE -------- BACKGROUND LIGHT SIGNAL (54 PIN BLACK CONNECTOR NO,1 ) ON LEFT A -PILLAR
