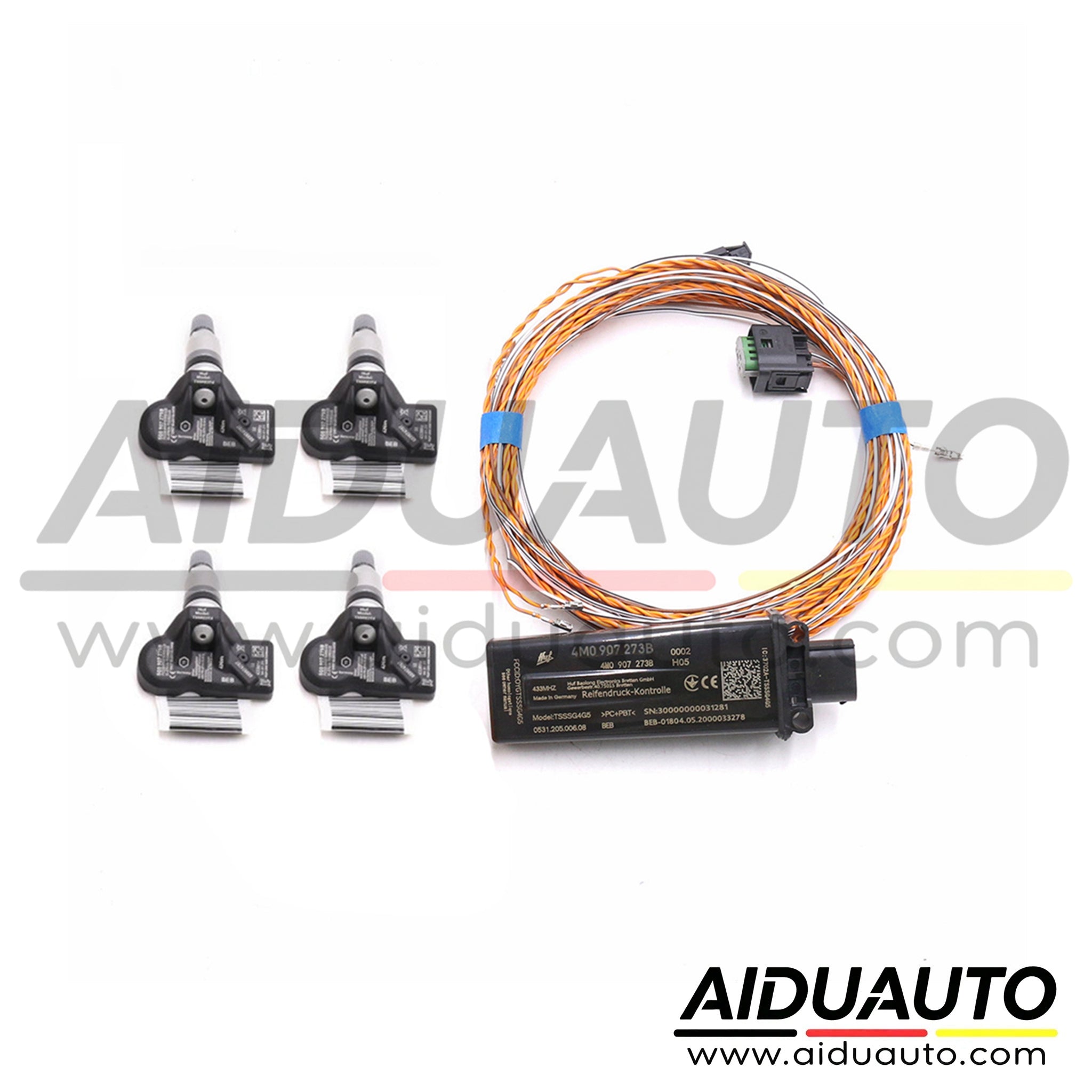

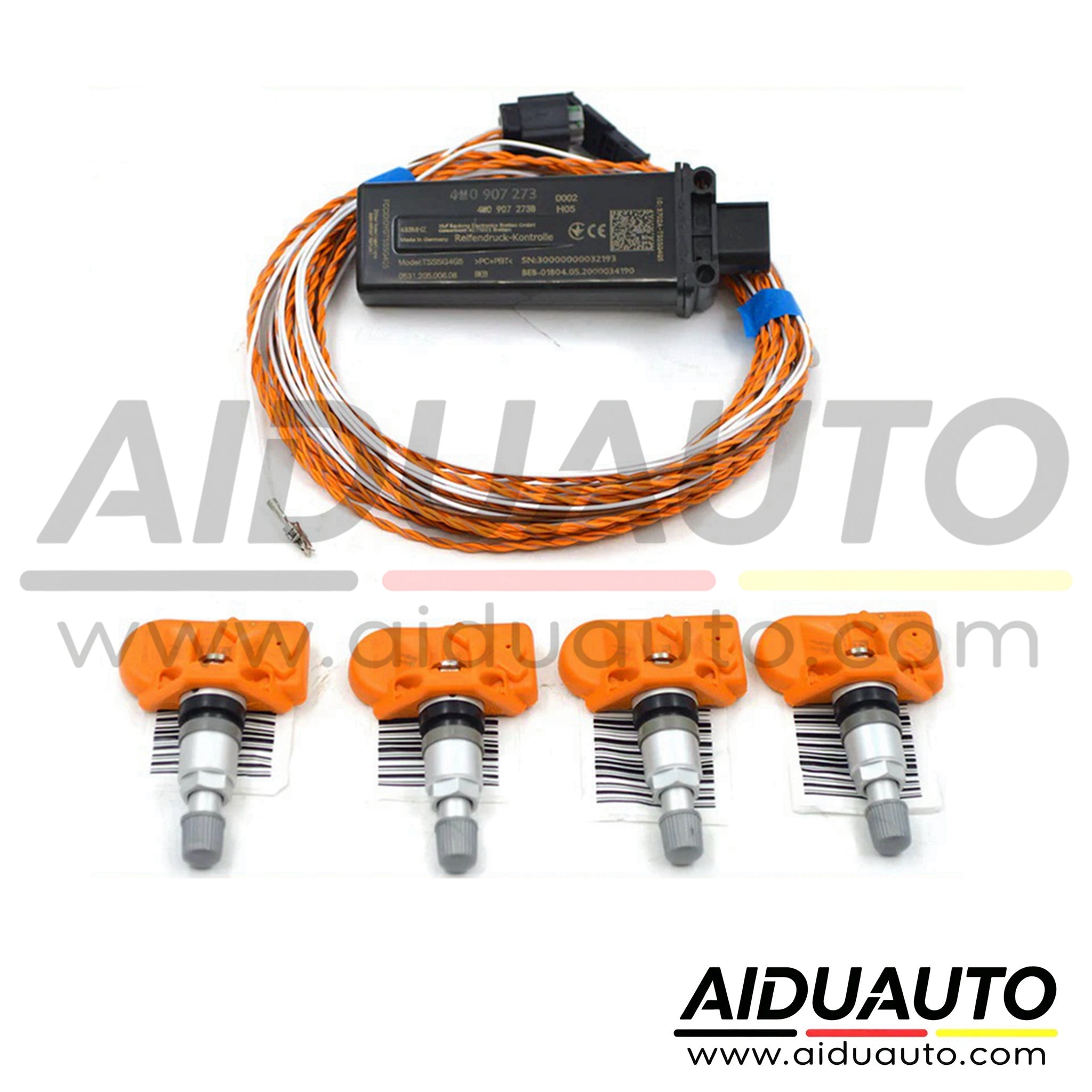

Audi A3 8V TT 8S MK3 A4 B9 A5 F5 Q2 Q3 F3 Q5 Q8 FY Q7 4M A6 C8 TMPS 2 TPMS Retrofit Tire Pressure System Module 4M0 907 273

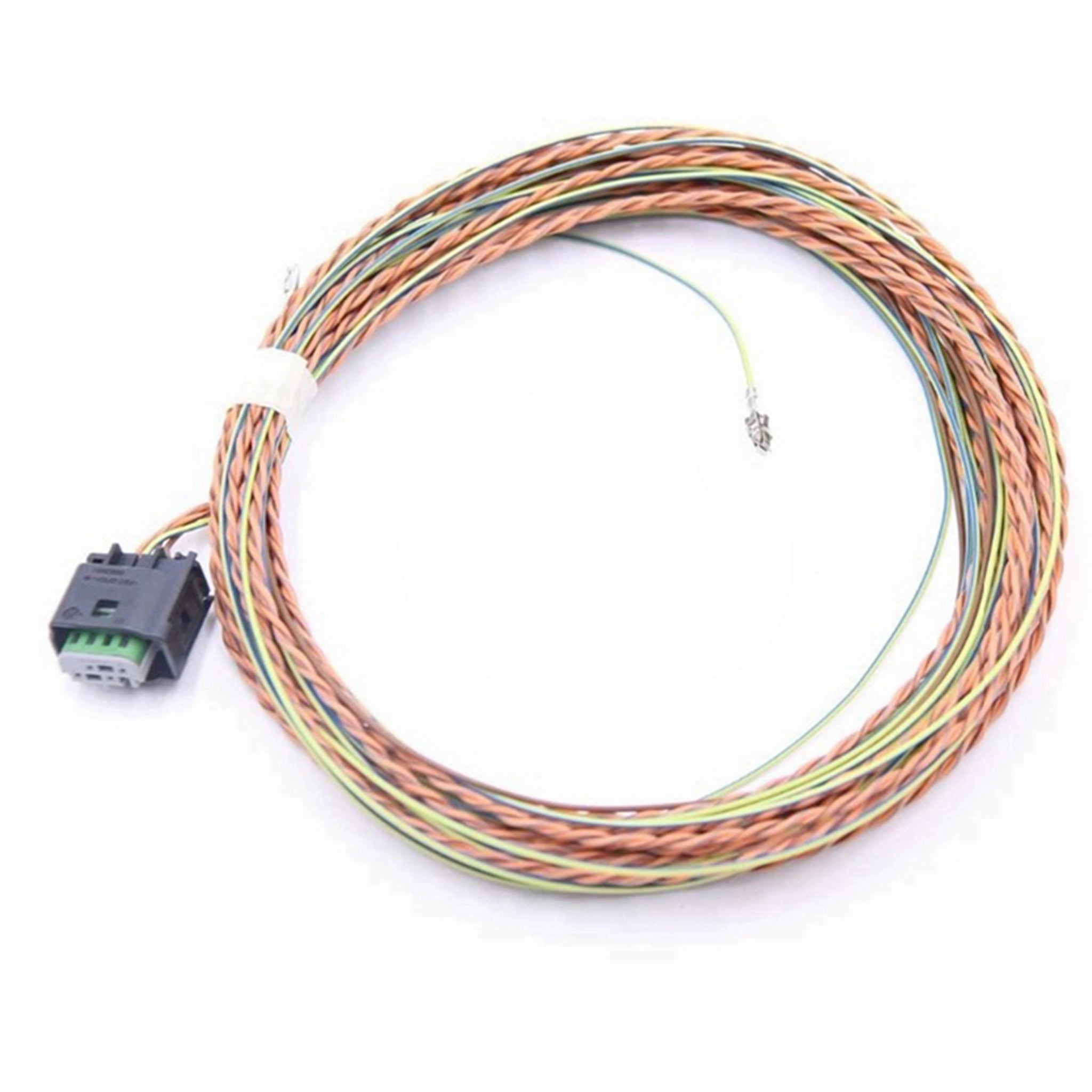

FOR A3/Q2/Q3/TT

ORANGE/GREY CAN + (CAN HIGH) ------- T20/17
ORANGE/BROWN CAN - (CAN LOW ) -----T20/7
WHITE/BLACK ------ POWER
BROWN -------- GND


FOR A4/A5/Q5/Q7/Q8

ORANGE/GREY CAN + (CAN HIGH) --------- T54A/30
ORANGE/BROWN CAN - (CAN LOW ) -------- T54A/12
WHITE/BLACK ------ POWER
BROWN -------- GND


CODING :

Address [19] CAN GATEWAY: MODULE[65]-> INSTALLED

Address 17 - Byte 03 - Bit 7=1
Address 17 - Byte 04 - Bit 0=0
Address 17 - Byte 11 - Bit 2=1


Address 03  Byte 14 - Bit 6=0   (OR "52" change to "42" )
Address 03 - Byte 26 - Bit 1=0  (OR "4A" change to "48" )

Address 5F -> Adaptation 10
Car Function List BAP Gen2-tirepressure system 0x07-> activated
Car Function List BAP_Gen2-tire pressure system 0x07 msg bus> Databus extended
Car_Function Adaptations Gen2-menu display rdk -> activated
Car Function Adaptations Gen2-menu display rdk standstill-> not activatedCar Function Adaptations Gen2-menu display-rdk over threshold high -> activated
