It is made of high-grade canvas, 2 pieces of cloth weighing 3 Kg, waterproof and sunscreen, and can be washed when dirty.
The camera lens must be clean, the camera lens can only be cleaned with wet wipes.
t Detect the camera image on the display unit -J685- of the front information display and operation unit controller. If the image is affected by damage to a camera, replace the corresponding camera. If the image is tilted, check the fixation of the corresponding camera.
t The two exterior mirrors must have been folded out.
t The parking brake is tightened.
t The steering wheel is in the zero position and the wheels are straight forward.
t All doors and luggage compartment lids are closed.
t There are no people in the car.
t The vehicle is not loaded (empty weight).
t The battery charger is connected, and the battery charger must not be within the sight of the camera.
t The ignition switch is turned on.

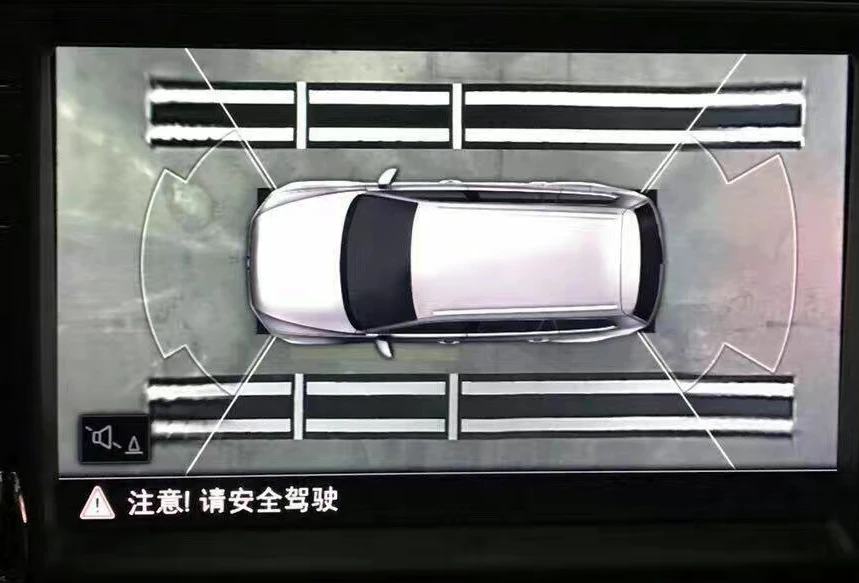

t The system is activated and displayed on the display unit -J685- of the front information display and operation unit controller.
t Do not move the car during calibration.
Prerequisites for calibration table/calibration environment

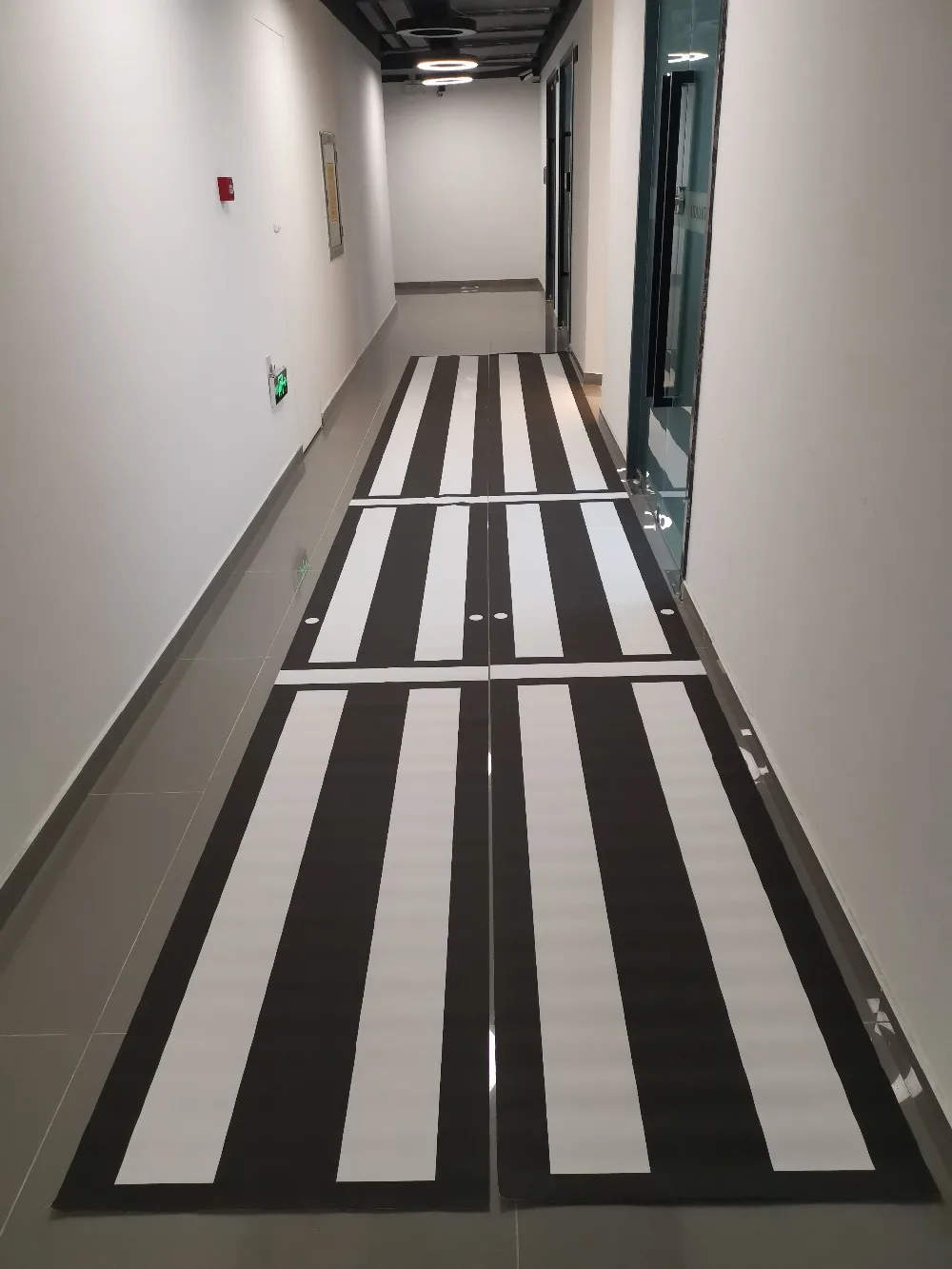

l Flat calibration surface
l There must be no objects in the surrounding environment of the calibration area to avoid line recognition errors.
l Uniform light (no headlights or direct lighting) to avoid strong light differences

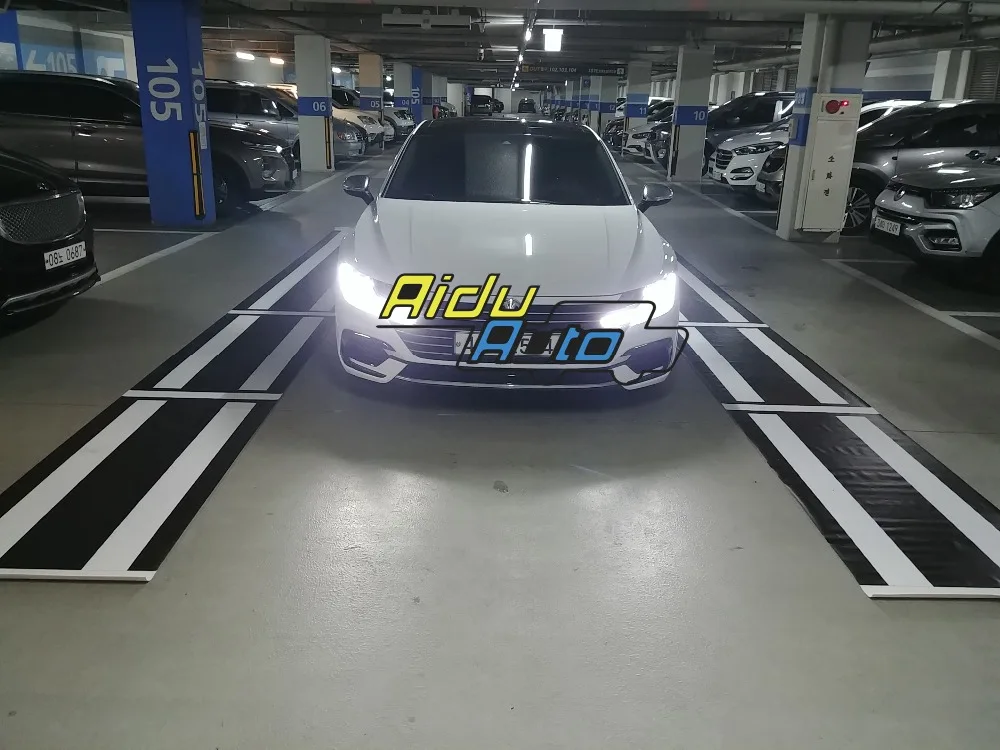

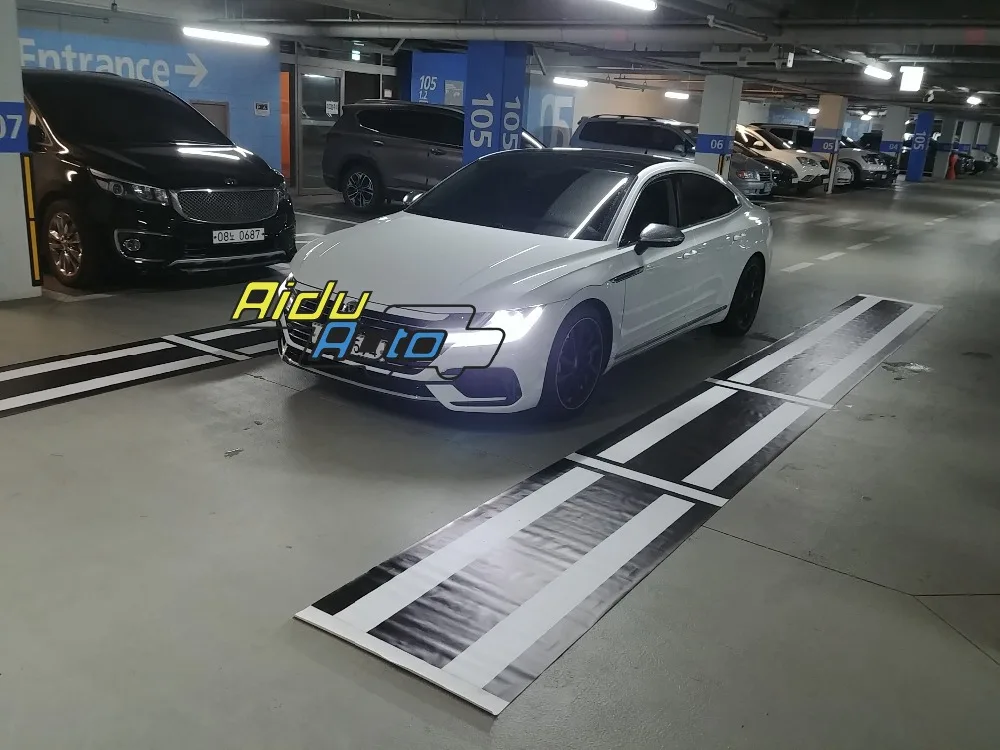

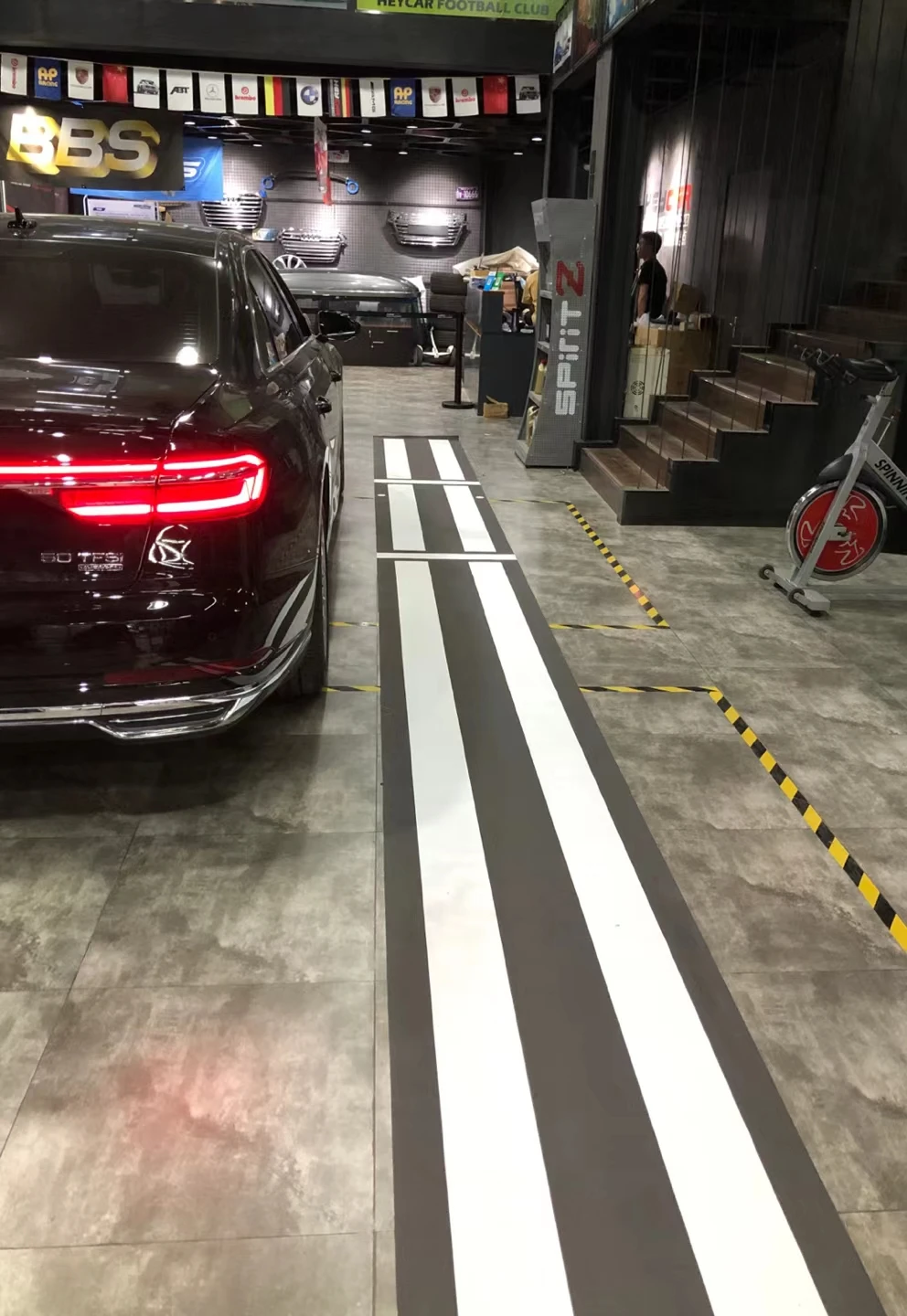

– Position the two calibration templates in parallel. The car must be centered between the two calibration templates.
Note the following:

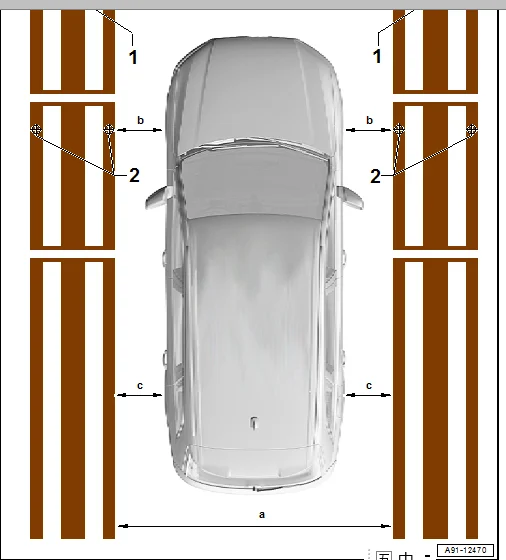

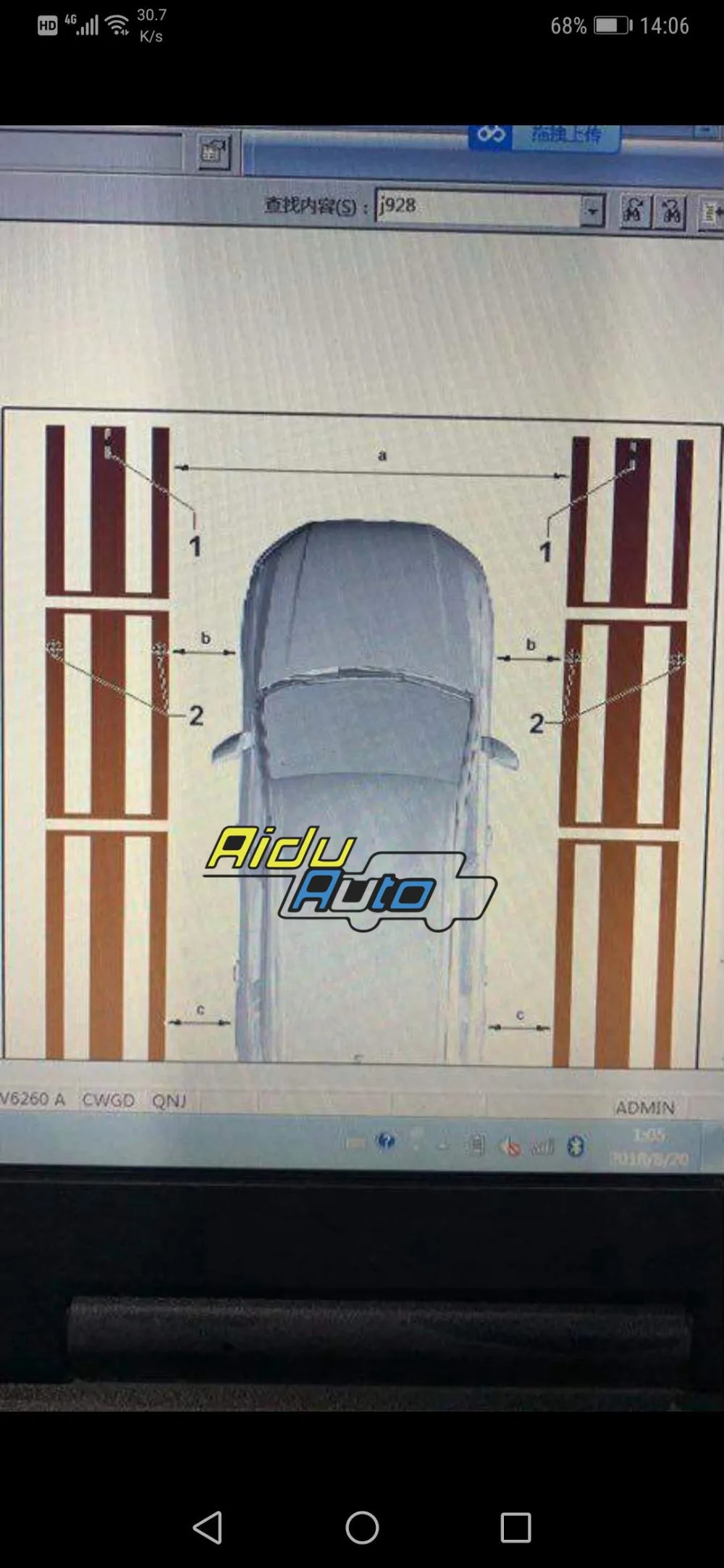

l Dimensions -a- 2000 to 2500 mm ± 5 mm, the front and rear are the same
l Dimensions -b- must be the same on both sides
l Dimensions -c- must be the same on both sides
