A3 8Y -OCTAVIA MK4 0K-8K PARKING SYSTEM

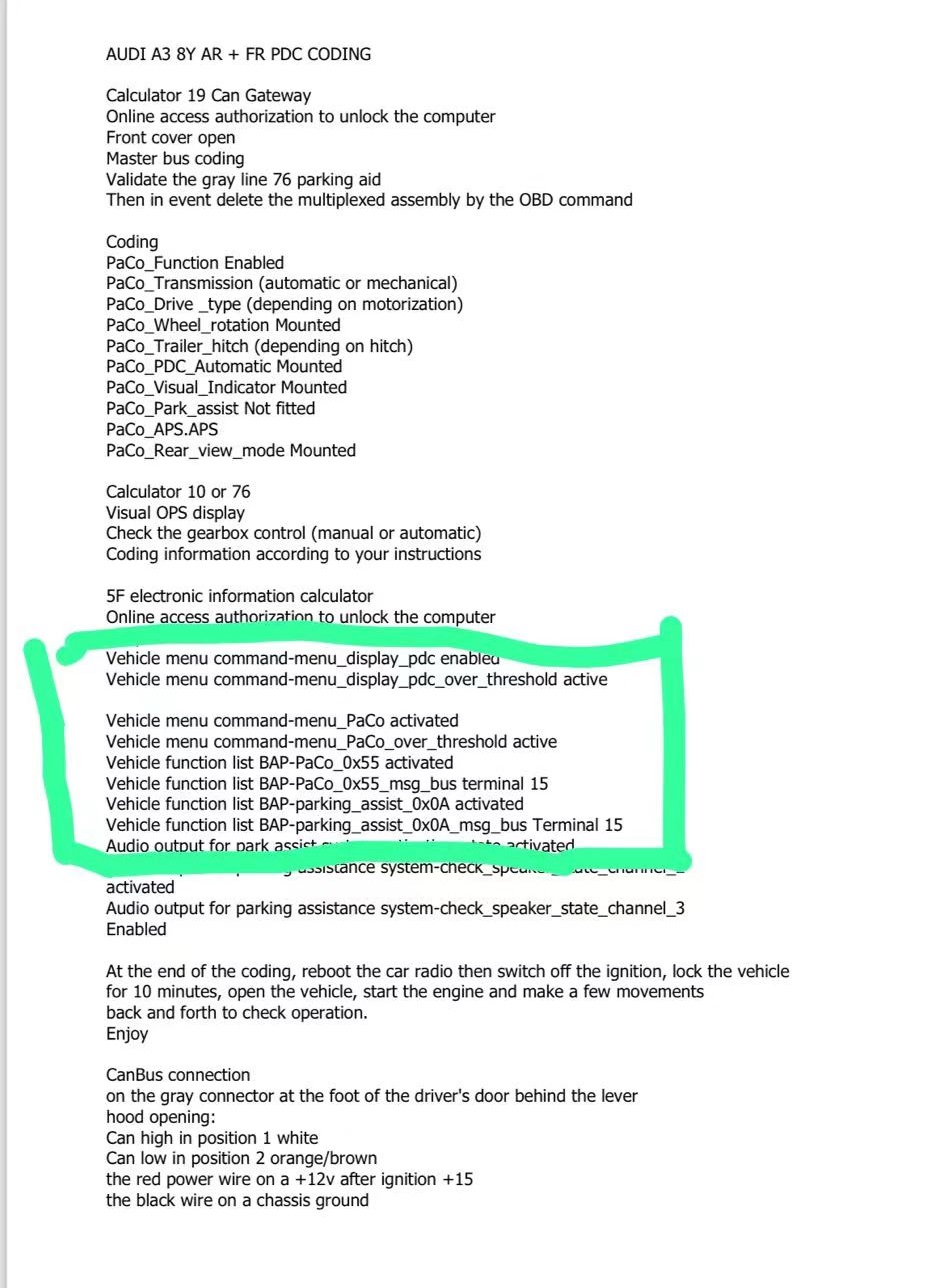

STEP 1 :  19 gateway (please enable SFD in advance)

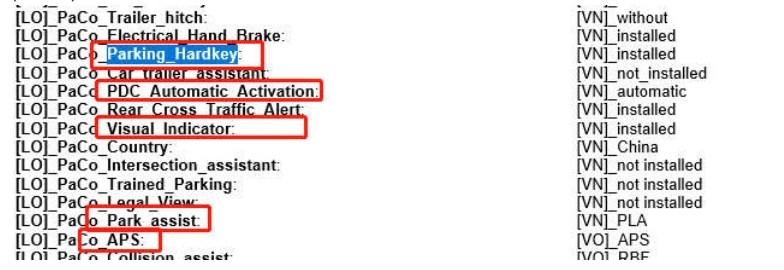

paco_parking hardkey has been installed (applicable when there is a radar switch)
paco pdcautomatic activation installed
paco visu indicator installed
paco parkassist Select PLApacoaps Select APS




 STEP 2  :   76 CODE : 00420100

------------------------------------------------------------------------


Front sensors
T8(1J0 973 814)                          18-pin plug
T8/7 Brown ---Radar Negative                T18/9
T8/8 Red ---Radar Positive                    T18/16
T8/2 Gray --- Left Front Radar                 T18/8
T8/3 Purple ---Left Front Center Radar          T18/17
T8/4 blue --- right front center radar            T18/7
T8/5 Yellow --- Right Front Radar              T18/18


Rear sensors
T8(1J0 973 814)                            26-pin plug
T8/7 Brown---Radar Negative                  T26/9
T8/8 Red - --Radar Positive                    T26/13
T8/2 Gray --- Left Rear Radar                   T26/10
T8/3 Purple --- Left Rear Center Radar           T26/20
  T8/4 blue - --right rear center radar           T26/11
T8/5 Yellow --- Right Rear Radar                T26/21


Switch Wire
T20/3--- Yellow Gray--- T26/7
T20/13 ---Yellow Blue ---T26/8

black red ---ACC
brown ---ground

CANBUS WIRE
T26/22 ---Orange White ---T32/23 J533
T26/23 ---Orange Brown ---T32/22 J533
