MQB 4K - 8K

MQB ~ 4K- 8K

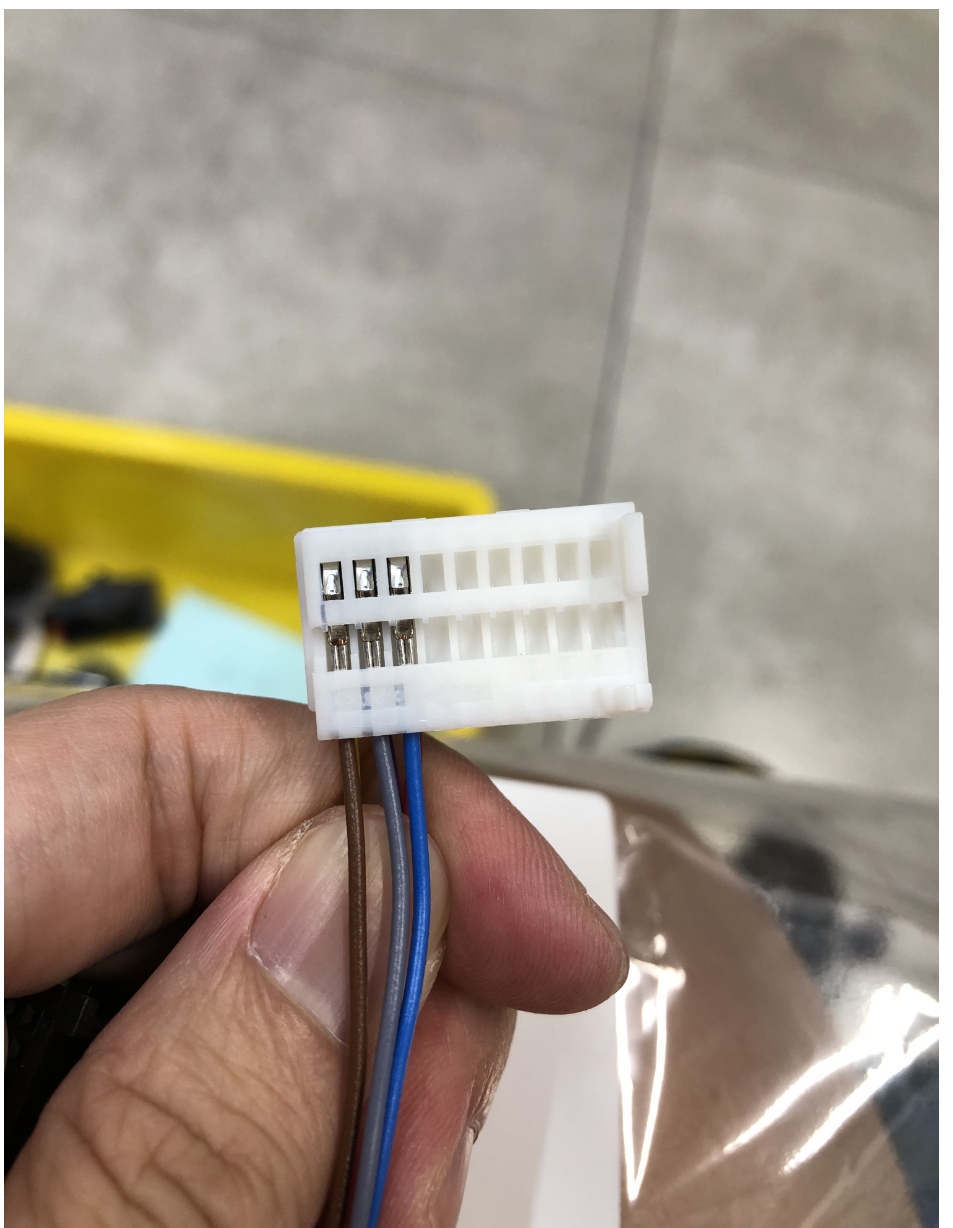

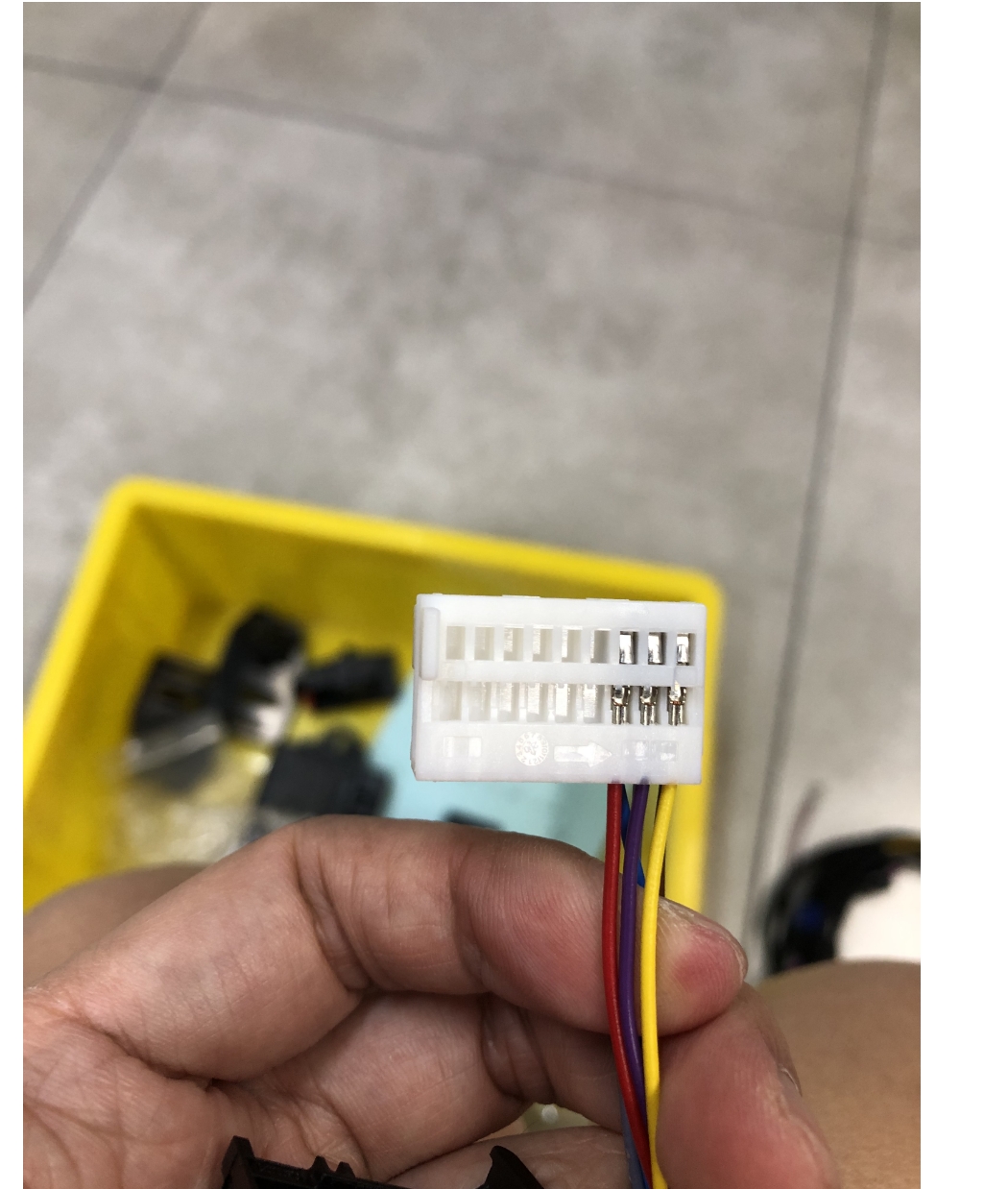

FRONT :

T8/7 -----------  brown -------- T18/10
T8/8 -----------  red -------- T18/14
T8/2 -----------  gray -------- T18/11
T8/3 -----------  purple-------- T18/3
T8/4 -----------  blue -------- T18/12
T8/5 -----------  yellow -------- T18/4


BUZZER :

red/green --------- T26/2
purple/green ------- T26/10

PDC SWITCH :

T20/4 ---- yellow/blue ------ T26/16
T20/14 ---- yellow/green ------ T26/17

Code ：
19 - installation  list --- tick 10 --- park/steer assist
76 ---- new code --- "04 71 05 10 11"
17--- new code --- byte -- 80 change to 90
5F ---- byte 19 ---- change to 1 (open radio OPS support)

Code maybe different ,Please check long code helper

The list of car functions found by matching the address code 5F is as follows
[ VO ] Car _  Function _  List _  BAP _ Gen2
[ LO ] parking _  assist _ 0x0A Change from inactive to active
[ LO ] parking _  assist _ Ox0A_  msg _  The bus is not activated and the terminal 15 is changed
Find the car function matching as follows
VOLCar _  Function _  Adaptations _ Gen2
[ LO ] menu _  display _  Change the pdc inactive to "active"
[ LO ] menu _  display _  pdc _  over _  threshold _  High Inactive to Active
Then find the car function list CAN as follows
[ VO ]_Car_  Function _  List _  CAN _ Gen2
[ LO ]_  PDC - audio _  Lowering "Unavailable" to "Available"
[LO] PDC_ audio _  lowering _  msg _  Bus is changed to "terminal 15“
