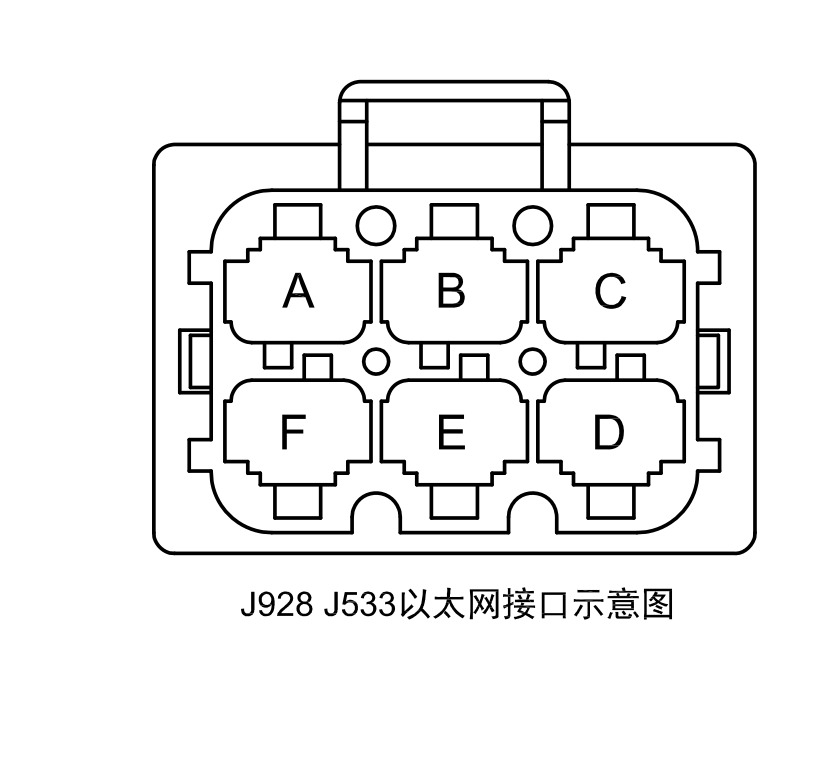

EVO/MEB PLATFORM 360 SYSTEM

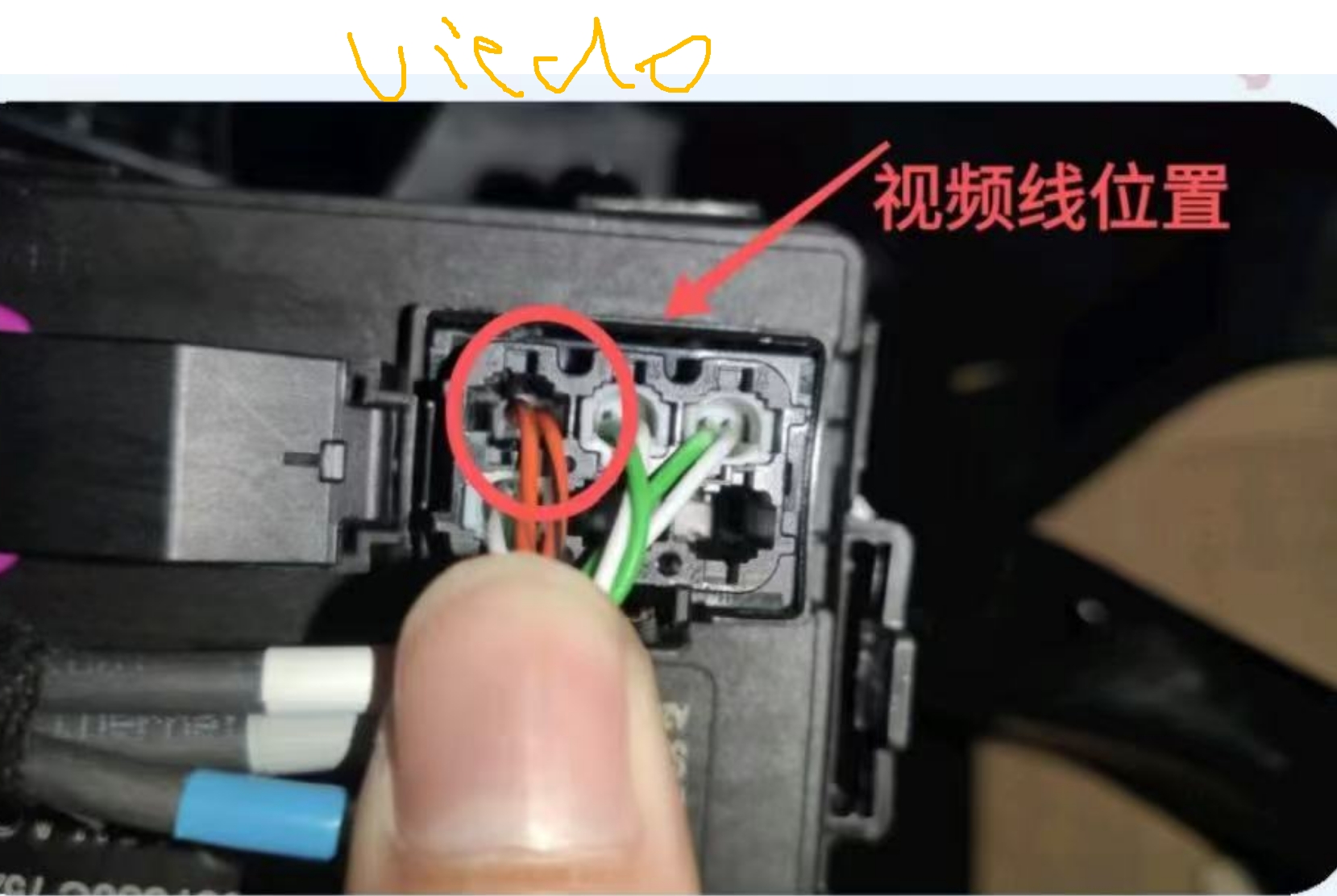

Orange brown T32/6
orange gray T32/7
 red ACC power
 brown ground

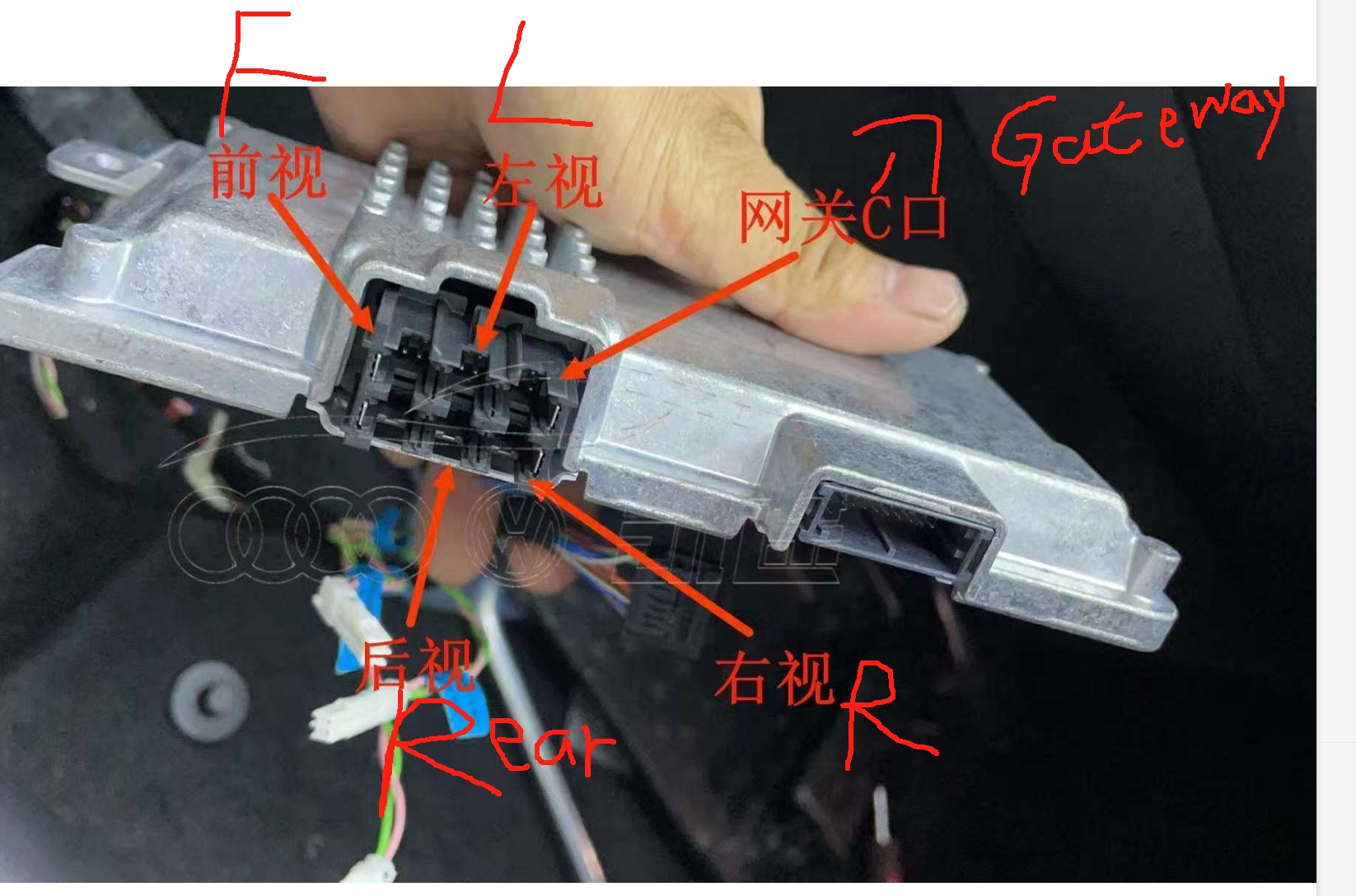

19 Gateway:
17 bytes 03 changed to 73
17 bytes 00 changed to 70
21 bytes 00 changed to 03


6C Code: 01 01 32 00 9C 20 00

Gateway plain text code: Paco vide parksystem changed to Tv-entry.

Panoramic matching: don’t mess around if you don’t know how, the module is hard-coded and write-locked, there are consequences at your own risk


5. 6C - Calibration CAMERA (Need use VAS721001 )

you can buy VAS721001 from :

https://www.aliexpress.com/item/32913651135.html









The camera lens must be clean, the camera lens can only be cleaned with wet wipes.

t Detect the camera image on the display unit -J685- of the front information display and operation unit controller. If the image is affected by damage to a camera, replace the corresponding camera. If the image is tilted, check the fixation of the corresponding camera.
t The two exterior mirrors must have been folded out.
t The parking brake is tightened.
t The steering wheel is in the zero position and the wheels are straight forward.
t All doors and luggage compartment lids are closed.
t There are no people in the car.
t The vehicle is not loaded (empty weight).
t The battery charger is connected, and the battery charger must not be within the sight of the camera.
t The ignition switch is turned on.
t The system is activated and displayed on the display unit -J685- of the front information display and operation unit controller.
t Do not move the car during calibration.
Prerequisites for calibration table/calibration environment
l Flat calibration surface
l There must be no objects in the surrounding environment of the calibration area to avoid line recognition errors.
l Uniform light (no headlights or direct lighting) to avoid strong light differences

– Position the two calibration templates in parallel. The car must be centered between the two calibration templates.

Note the following:
l Dimensions -a- 2000 to 2500 mm ± 5 mm, the front and rear are the same
l Dimensions -b- must be the same on both sides
l Dimensions -c- must be the same on both sides
