INSTALL MLBEVO 3D Assistant Aerial View Map Decoder Simulator
Need To Prepare ：
1. TYPE-C USB Disk
2. Odis-E ( 6154A )
3. Know How To Update Map Data (Mib Unit)
-------------------------------------------------------------------------------------------------
STEP 1 : update MIB UNIT data:
File download address: https://drive.google.com/file/d/1GlVQD18wJSpmOPMenNQtfkmU_itSNnOr/view?usp=drive_link

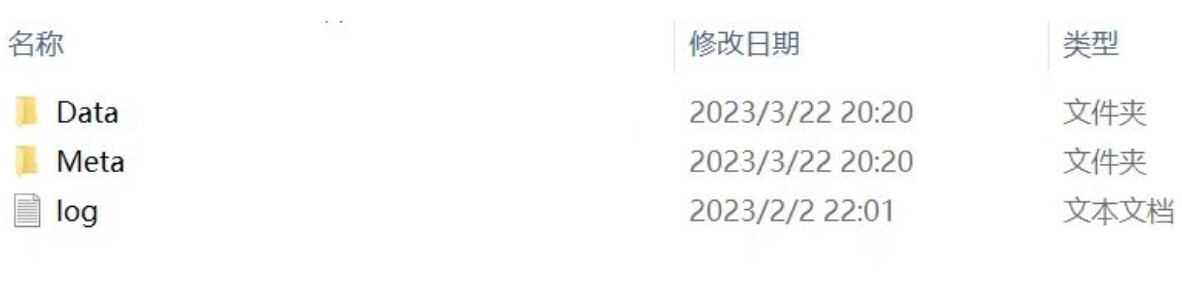

These three files are placed in the root directory of the U disk. The upgrade method is the same as updating map data.

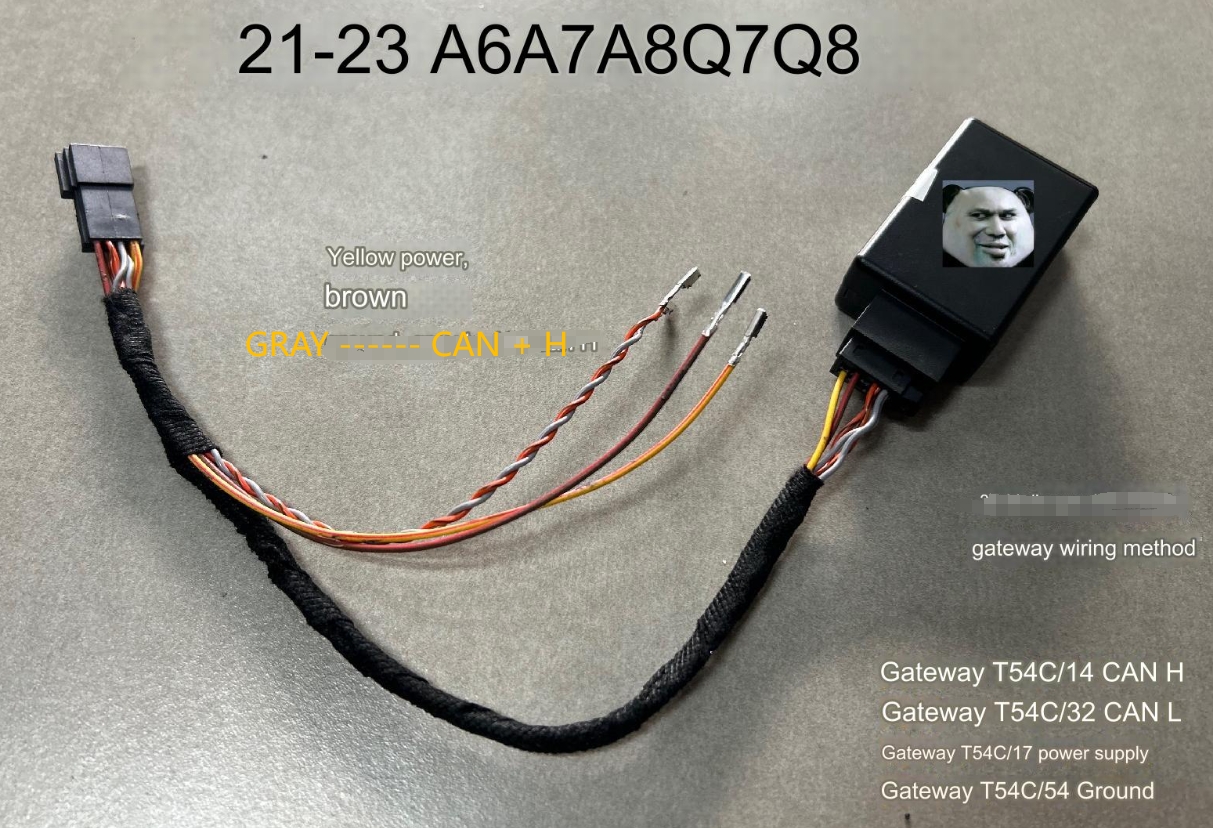

STEP 2 : Wiring definition
GND --- brown T54C/54
12 V + -- red T54C/17
can + orange /gray T54C/14
can -orange /green T54C/32
STEP 3 : CODING
1. 17 - Cluster - Coding Fas Umfeldmodel1: Changed To "Yes"----- & Byte 2 change To 54
2. 17 Cluster - Adaptation -----Configurable Content Display: Rs Farbumschaltung: Changed To Activate
1. TYPE-C USB Disk
2. Odis-E ( 6154A )
3. Know How To Update Map Data (Mib Unit)
-------------------------------------------------------------------------------------------------
STEP 1 : update MIB UNIT data:
File download address: https://drive.google.com/file/d/1GlVQD18wJSpmOPMenNQtfkmU_itSNnOr/view?usp=drive_link
These three files are placed in the root directory of the U disk. The upgrade method is the same as updating map data.
STEP 2 : Wiring definition
GND --- brown T54C/54
12 V + -- red T54C/17
can + orange /gray T54C/14
can -orange /green T54C/32
STEP 3 : CODING
1. 17 - Cluster - Coding Fas Umfeldmodel1: Changed To "Yes"----- & Byte 2 change To 54
2. 17 Cluster - Adaptation -----Configurable Content Display: Rs Farbumschaltung: Changed To Activate
