Passat B8 T-ROC LOWLINE CAMERA INSTALL
How did I connect the camera?
- white --- 12 V +
- black/white ------- Reversing Light 12 V +

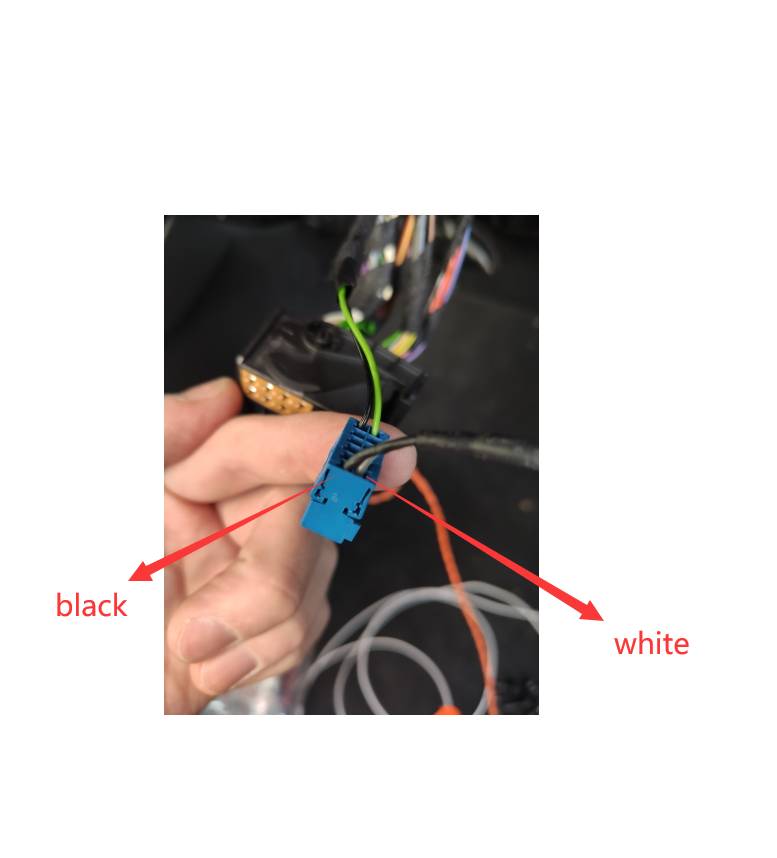

- 2 video signal wires – Black and Transparent
- 2 power wires – White (+12V) and Brown (GND)

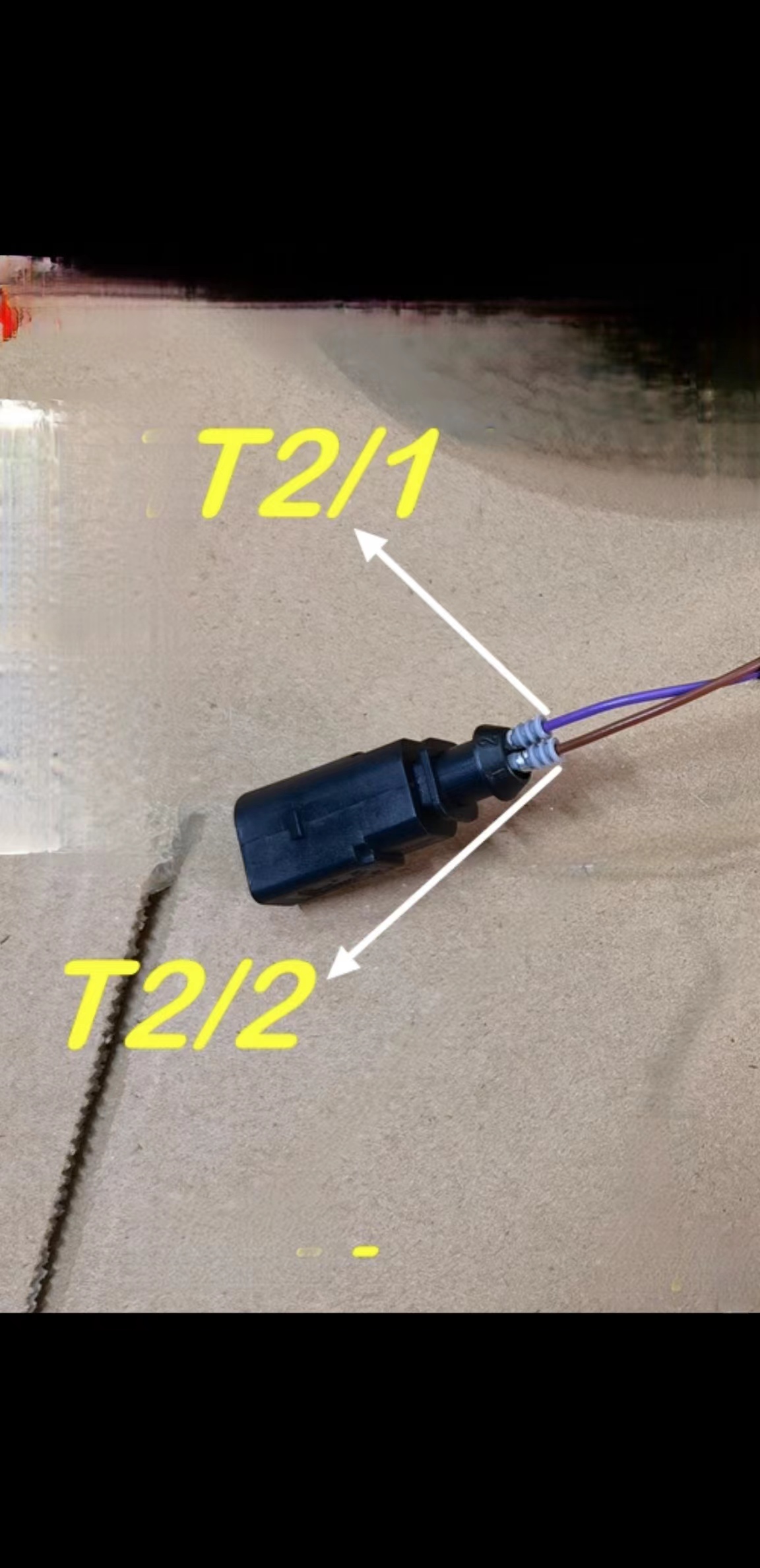

- Flip motor power conversion (T2/1 and T/2)
- video output ：
- Flip Motor Adapter ：
How did I coding the camera?MIB -2 CODE : VCDS CODE : 5F --------- BYTE 19 ------ "04 " CHANGE TO "14 "
More Reference : https://carsystems.home.pl/instrukcje/VW%20Passat%20B8-%20kamera%20cofania%20ANG%20v.1.0.pdf

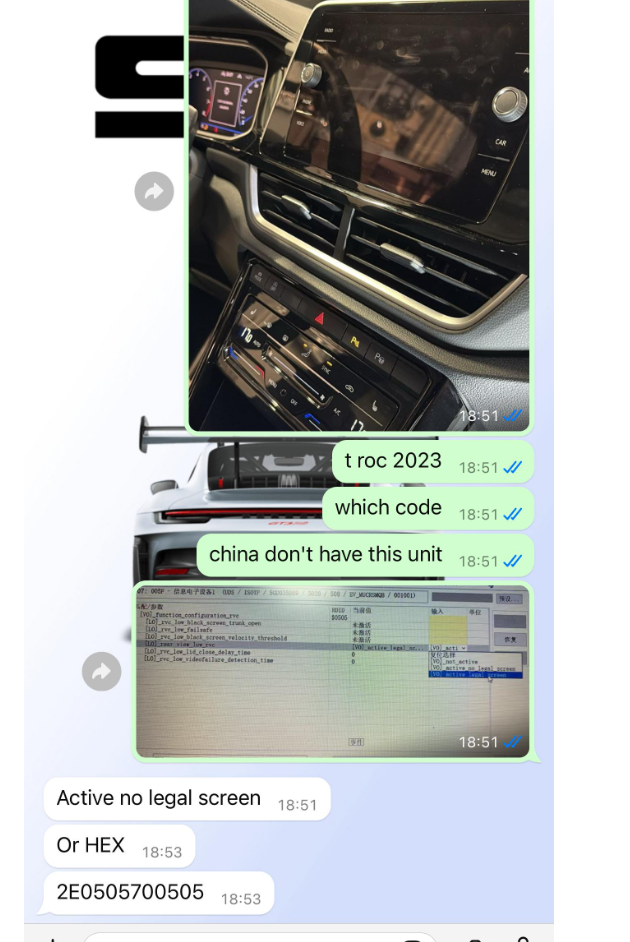

MIB -3 CODE :

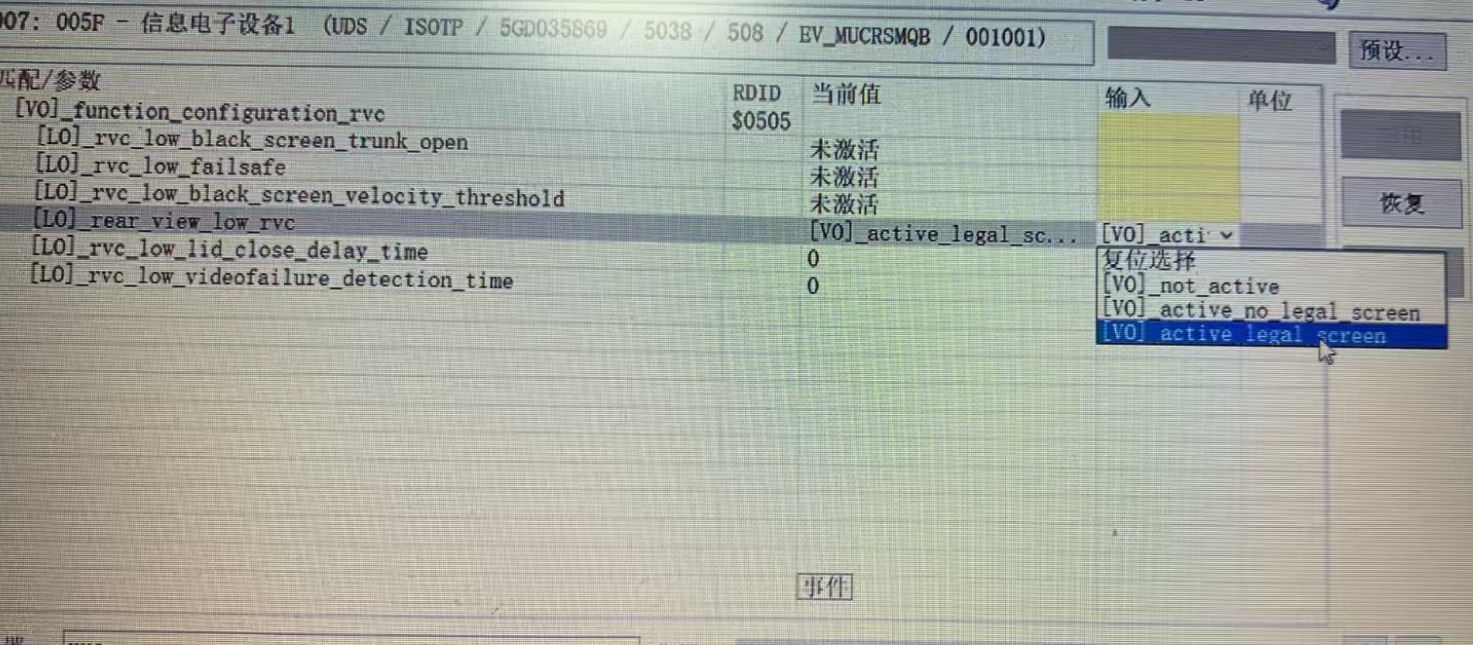

5f > adaptation> function_configuration_rvc > active_no_legal
