GOLF MK7 0K - 8K Parking system kit

https://carsystems.home.pl/marcin/support/VW_Golf_MK7-_PDC_ANG_v10.pdf



----------------------------

Front Bumper

T8/1------T18/2
T8/2------T18/11
T8/3------T18/3
T8/4------T18/12
T8/5------T18/4
T8/6------T18/13
T8/7------T18/10
T8/8------T18/14

Rear Bumper

T8/2----T26/6
T8/3----T26/20
T8/4----T26/7
T8/5----T26/21
T8/1-----T26/8
T8/6 -----T26/19
T8/8----T26/18 acc
T8/7----T26/22 GND

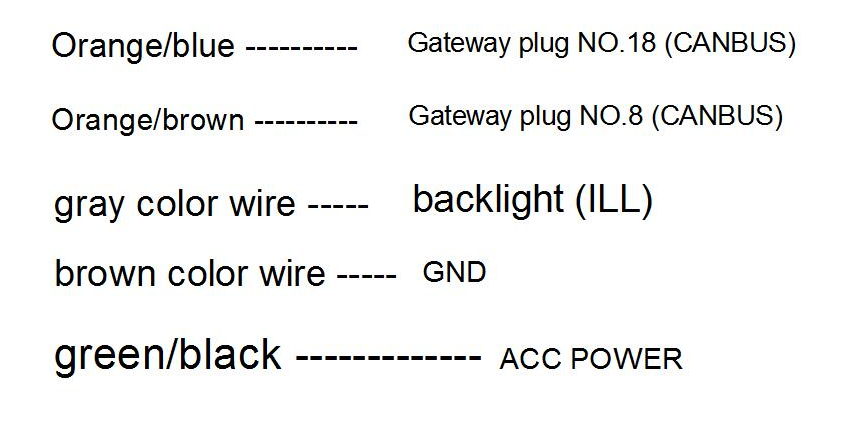

Canbus wire

T26/23 ------ CANBUS T20/8
T26/24 ------ CANBUS T20/18

Front Buzzer

T2/1 ----- PDC Module T26/2
T2/2 ----- PDC Module T26/10

Rear Buzzer
T2/1 ---- PDC Module T26/15
T2/2 ---- pdc Module T26/9


Switch :
T10/1-------ILL -
T10/2-------ILL +
T10/3-------PDC Module T26/16
T10/6-------PDC Module T26/17


Code ：
19 - installation  list --- tick 10 --- park/steer assist
10 - 0031051011 (AT) , MT 0031051001


Note :
long codeing helper is necessary,some code maybe diferent.
Try found more info from google .



Code ：
19 - installation  list --- tick 10 --- park/steer assist
76 ---- new code --- "04 71 05 10 11"
17--- new code --- byte -- 80 change to 90
5F ---- byte 19 ---- change to 1 (open radio OPS support)

Code maybe different ,Please check long code helper

The list of car functions found by matching the address code 5F is as follows
[ VO ] Car _  Function _  List _  BAP _ Gen2
[ LO ] parking _  assist _ 0x0A Change from inactive to active
[ LO ] parking _  assist _ Ox0A_  msg _  The bus is not activated and the terminal 15 is changed
Find the car function matching as follows
VOLCar _  Function _  Adaptations _ Gen2
[ LO ] menu _  display _  Change the pdc inactive to "active"
[ LO ] menu _  display _  pdc _  over _  threshold _  High Inactive to Active
Then find the car function list CAN as follows
[ VO ]_Car_  Function _  List _  CAN _ Gen2
[ LO ]_  PDC - audio _  Lowering "Unavailable" to "Available"
[LO] PDC_ audio _  lowering _  msg _  Bus is changed to "terminal 15“
