FOR TT 8S -INSTALL R8 Engine Start Stop Drive select switch button Installation wiring diagram

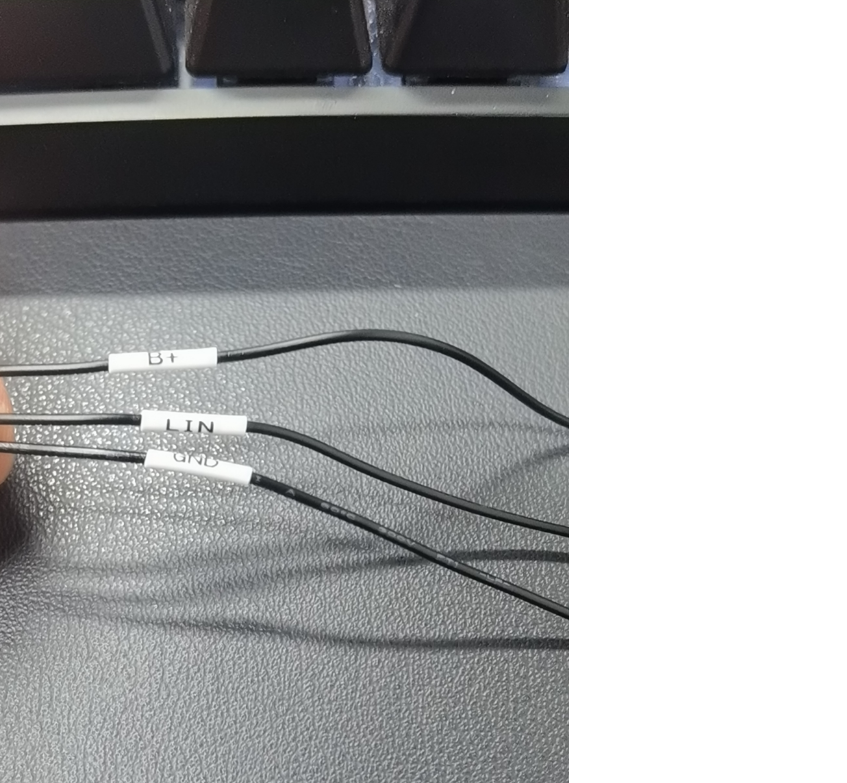

STEERING WHEEL BUTTON SIDE 3 WIRS :

B + --------------------------------------------- airbag cable - Red wire
GND ------------------------------------------- airbag cable - brown wire
LIN --------------------------------------------- airbag cable - Purple wire

RECEIVE SIDE WIRS :

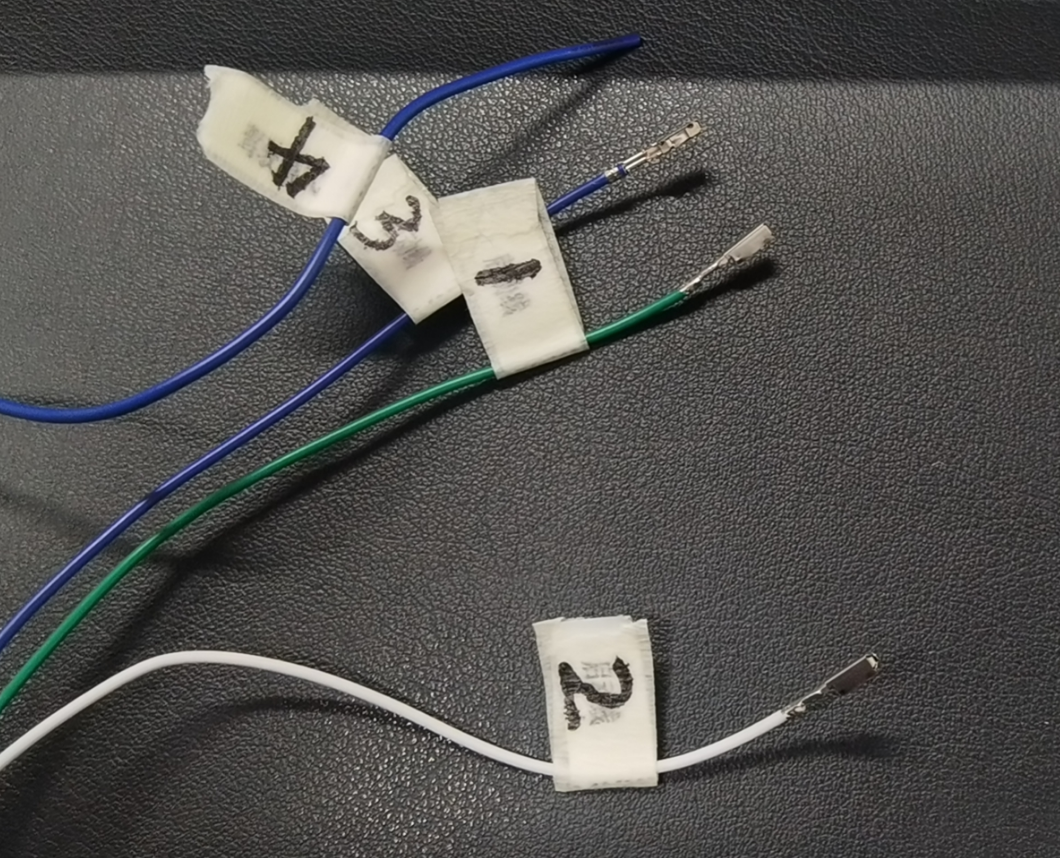

NO .1 ----- start/stop button signal - (start/stop button plug NO.5)

NO. 2 ----- start/stop button signal - (start/stop button plug NO.6)
NO. 3 ----- start/stop button signal - (start/stop button plug NO.3)

NO. 4 ------ driving mode button signal - (driving mode button plug NO.1)

How to punch holes on the steering wheel :
